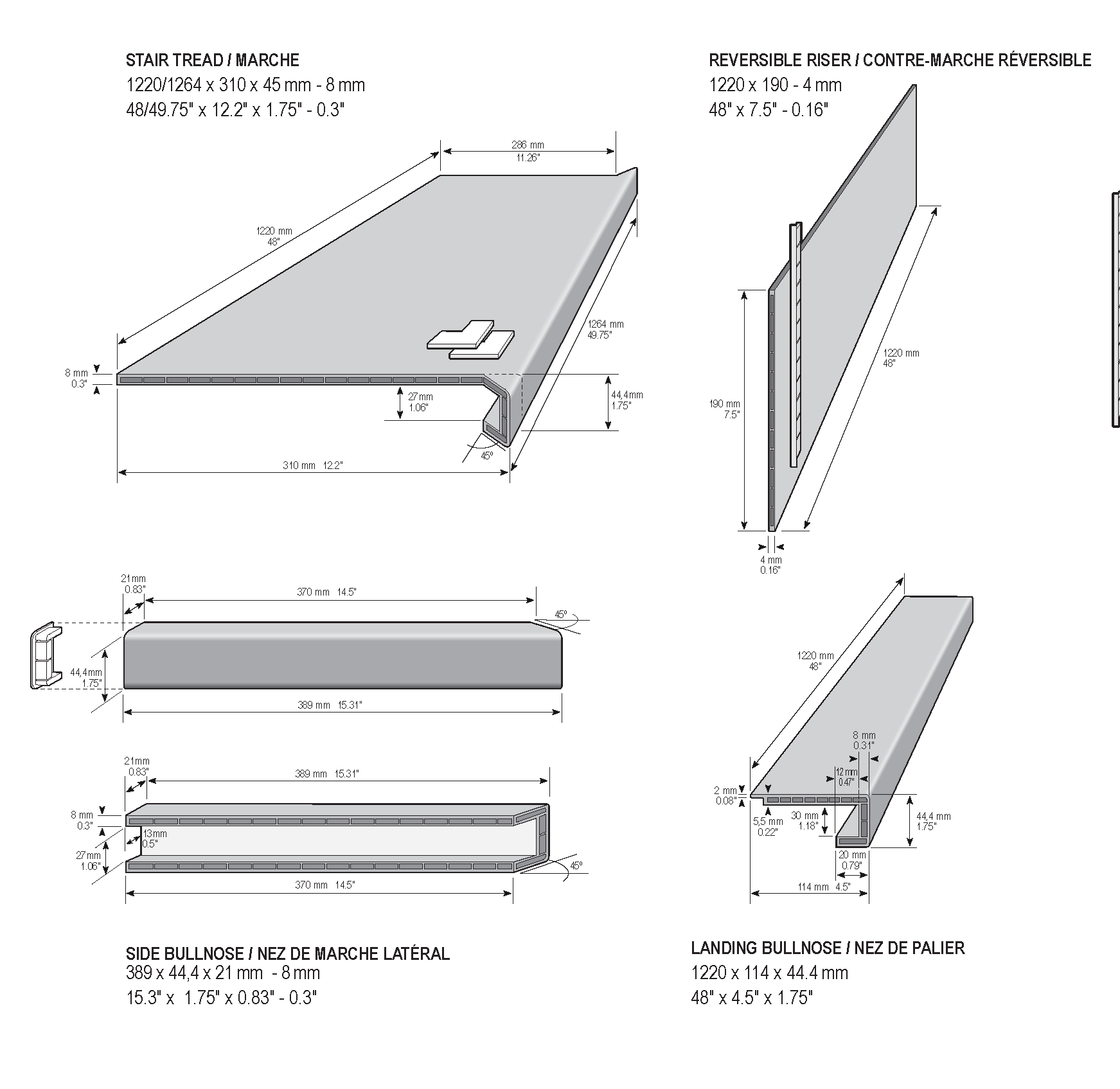

Tread: 48"/49.8" x 12.2” x 0.32" • 1220/1264 mm x 310 mm x 8 mm
Riser: 48.2" x 7.5" x 0.16” • 1225 mm x 190 mm x 4 mm
Tread return: 14.7"/15.2" x 1.7" x 0.83" • 372/386 mm x 44 mm x 21 mm
All dimensions are nominal
2 sets per box:
2 x Treads
2 x Risers
4 x Treads return
4 x Caps
8 x Corners L clips
Available Colours
Specifications
| Model | 85040; 85041 |
|---|---|
| Where to install | 100% virgin |
| Installation Method | Glue-down only per instructions supplied in the box. |
| Tread Width | 31 cm (12.2") |
| Tread Length | 122 cm (48") |
| Tread Thickness | 8.0 mm (0.32") |
| Tread Wear Layer | 12 MIL |
| Tread Caps Per box | 2 |
| Riser Width | 19 cm (7.5") |
| Riser Length | 122.5 cm (48.2") |
| Riser Thickness | 4 mm - (0.16") |
| Riser Wear Layer | 6 MIL |
| Riser Per box | 2 |
| Tread Return Dimension | 37.2 cm / 38.6 L cm x 4.4 cm x 2.1 cm W (14.7"/15.2" L x 1.7" / 0.83" W) |
| Tread Return Per box | 4 |
| Product Features | 100% waterproof |
| Surface Type | Slip-resistant natural wood-grain embossed surface |
| Finish | DurAlOx® finish provides exceptional scratch and wear resistance |
| Decor | High resolution decor layer |
| Box dimensions (L × W × H) | 127.5 cm × 33 cm × 5.9 cm 50.2" × 12.9" × 2.32") |
| Box Weight | 10 k (22.05 lbs) |
| Box packaging | 2 units/box |
| Country of origin | China |
| Warranty | Lifetime residential & 10 year limited light commercial warranty |
Note: All dimensional and weight information noted here is nominal.
